Circular Milling Machine

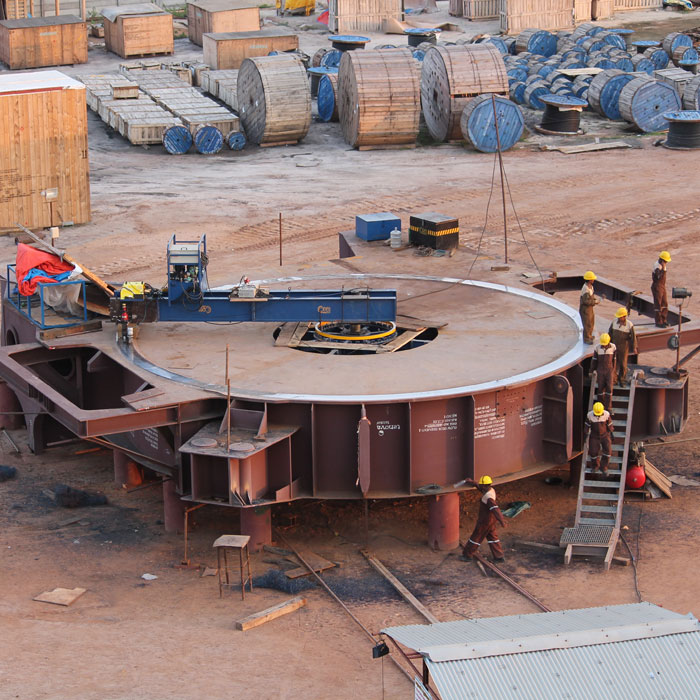

Coren's circular milling machine are portable equipment used for onsite machining of flanges with high tolerance and good surface finish.

State of art design.

Coren's circular milling machine are designed to accommodate on wide range of flange machining applications with flange diameters from 900 mm to 14000mm.

Robust Construction

Coren's circular milling machine is constructed to accommodate on all light duty application and still easy for handling. Coren's circular milling machine is driven by hydraulic motor for spindle rotation and twin electrical motors for circular rotation for efficient material removal.

Versatile setups

Coren's circular milling machine can be mounted in horizontal, vertical and inclined positions on different flange machining applications.

Various applications

Coren's circular milling machine has its usage in various industries like, mining, power, steel, shipbuilding, heavy engineering, refineries petro chemicalsetc., covering wide range of applications like, MTB Flanges, T/L trunk and bell trunk faces, ship's gun mounting flanges, valves, crane pedestals etc.,

Technical specification

Model	CCMM2000	CCMM4000	CCMM6000	CCMM8000	CCMM14000
Machining Diameter – Min	900mm	1350mm	2000mm	4200mm	4000mm
Machining Diameter – Max	2000mm	2300mm	6000mm	8000mm	14000mm
Mounting Diameter - Min	800mm	1200mm	2000mm	2100mm	3000mm
Mounting Diameter - Max	1900mm	4000mm	5000mm	6000mm	13000mm
Swing Dia - Min	1000mm	3200mm	3000mm	4500mm	4500mm
Cutting Tool	Muiltipoint	Muiltipoint	Muiltipoint	Muiltipoint	Muiltipoint
Cutting Spindle	ISO 40	ISO 40	ISO 40	ISO 40/50	ISO 50
Cutter Diameter	Ø 50 - Ø 150	Ø 50 - Ø 250	Ø 150 - Ø 250	Ø 150 - Ø 350	Ø 250 - Ø 500
Spindle Drive	Hydraulic / Servo Electrical	Hydraulic / Servo Electrical	Hydraulic / Servo Electrical	Hydraulic / Servo Electrical	Hydraulic / Servo Electrical
Mill rotation Drive	Hydraulic / Servo Electrical	Hydraulic / Servo Electrical	Hydraulic / Servo Electrical	Hydraulic / Servo Electrical	Hydraulic / Servo Electrical
Mounting Type	ID Mount	ID Mount	ID Mount	ID Mount	ID Mount
Mounting Position	Horizontal / Vertical / Inclined position / Over Head	Horizontal / Vertical / Inclined position / Over Head	Horizontal / Vertical / Inclined position / Over Head	Horizontal / Vertical / Inclined position / Over Head	Horizontal / Over Head
Flange Back Facing	Optional	Optional	Optional	Optional	Not Available
Flange Grove Machining	Optional	Optional	Optional	Optional	Available
Flange ID Boring	Optional	Optional	Optional	Optional	Available
Weight of the equipment on job
weight of the equipment packing box
weight of the equipment packing box
