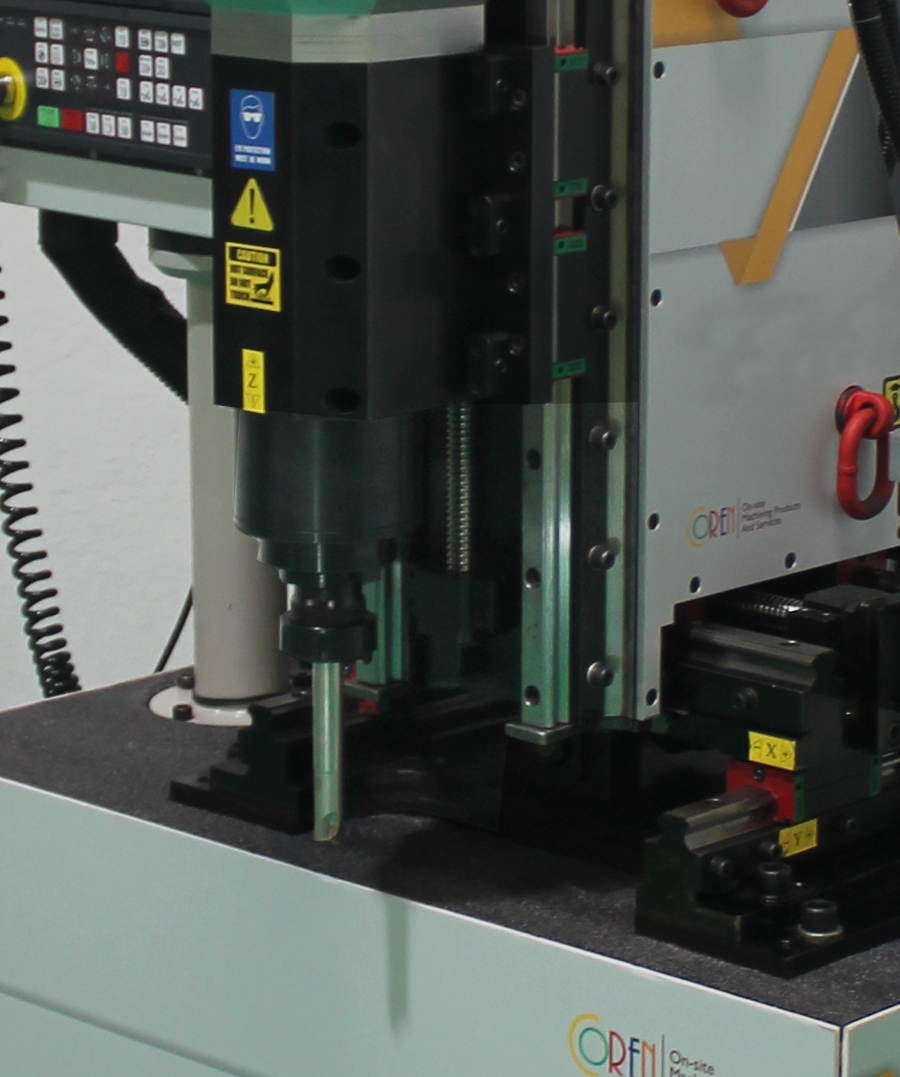

Coren's CNC Drilling Machine

Coren's

CNC Drilling Machine

Coren's CNC Drilling Machine is a top-of-the-line piece of equipment that offers exceptional performance and versatility. If you're in the market for a reliable, high-quality drilling machine, the Coren's CNC Drilling Machine is definitely worth considering.

State of art design.
Coren's CNC Drilling Machine is designed to be easy to use. The control panel is intuitive and user-friendly, and the machine can be operated by workers with varying levels of experience. This makes it an excellent choice for businesses of all sizes, from small workshops to large-scale manufacturing plants.
Robust Construction
One of the key features of the Coren's CNC Drilling Machine is its robust construction. The machine is built to last, with a sturdy frame that can withstand the rigors of industrial use. This means that the machine can handle heavy workloads and can operate reliably over extended periods of time.
Versatile setups
Another important feature of the Coren's CNC Drilling Machine is its versatile setups. The machine can be configured to perform a wide range of drilling operations, making it an ideal choice for a variety of applications. Whether you need to drill holes in metal, plastic, or other materials, this machine can get the job done.
Various applications
The Coren's CNC Drilling Machine is also highly accurate, with a positioning accuracy of 0.01 mm and a repeatability of 0.008 mm. This level of precision ensures that each hole is drilled with the utmost accuracy, which is essential for many applications.

Technical specification

Model CCNC 0100
X - Axis Travel 180 mm
Y- Axis Travel 180 mm
Z- Axis Travel 300 mm
Spindle Taper BT-40
Spindle Speed 3500 rpm
Cutter size Max Ø 80 mm
Drilling size with circular interpolation Ø 170 mm
Tapping size with thread milling M100
Axes : Rapid Traverse X/Y/Z- Standard 10 m/min
Feed Rate 1 - 5000 mm/min
Spindle Power 5 kW
Accuracy --
Postioning Accuracy 0.01 mm
Repeatability 0.008 mm
