Coren's
Gantry Milling Machine

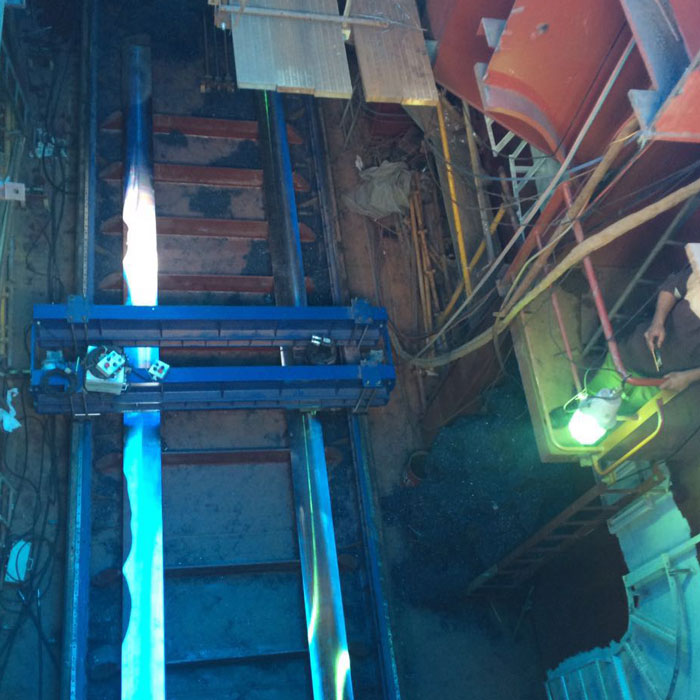

Coren's Gantry Milling Machine is a 3 axis portable gantry mill used for machining the large uneven surfaces to achieve the required flatness and surfaces finish.
State of art design.
Designed to mount on any type of jobs for the surface machining in combination of 3000 x 3000mm.
Coren's Gantry Milling Machine is a 3 axis portable gantry mill used for machining the irregular surfaces to achieve the required flatness and surfaces finish.
Designed to mount easily on any types of job for surface machine in combination of 3000 x 3000mm.
Robust Construction
Constructed for heavy duty applications and still easy for handling, CGMM3060 is driven by hydraulic / electric motor with ISO50 spindle for efficient material removal.
Versatile setups
Mounted in the combination of 3000 x 3000mm / 8000/ 9000/12000mm. The milling cutter position can be tilted to 30degrees both sides.
Various applications
Usage in various industries like power, steel, shipbuilding mining and heavy engineering etc covering wide range of application like engine mounting pads, GT mounting pads, Gear box mounting pads, Motor foundations, Square / Rectangular flanges, slots, grooves, gasket areas, girders, heavy construction girders etc.
