Coren ID Mount Flange Facers

Coren's

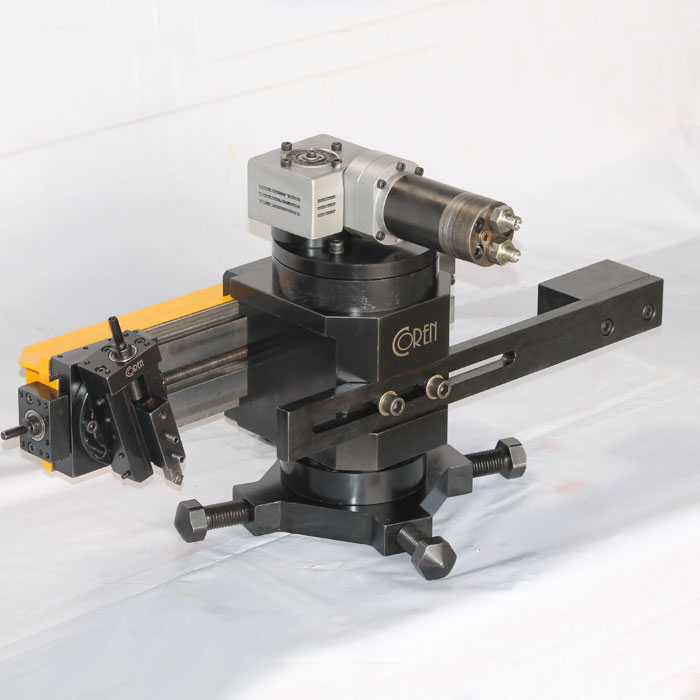

ID Mount Flange Facers

Coren's Flange Facing machines are portable equipment used for onsite machining of flanges with high tolerance and good surface finish.

State of art design.
Coren ID Mount Flange Facer is designed to accommodate on wide range of flange machining applications with flange diameters from 500 mm to 3000mm.
Robust Construction
Coren ID Mount Flange Facers is constructed to accommodate on all light duty application and still easy for handling. Coren ID Mount Flange Facers is driven by hydraulic motor for spindle rotation and twin electrical motors for circular rotation and efficient material removal.
Versatile setups
Coren ID Mount Flange Facers can be mounted in horizontal, vertical, inclined and overhead positions on different flange machining applications.
Various applications
Coren ID Mount Flange Facers has its usage in various industries like, mining, power, steel, shipbuilding, heavy engineering refineries petro chemicals, etc., covering wide range of applications like, MTB Flanges, T/L trunk and bell trunk faces, ship's gun mounting flanges, valves, crane pedestals etc.,

Technical specification

Model CIFF0600 CIFF1000 CIFF1500 CIFF2000 CIFF3000
Machining Diameter - Min 250mm 275mm 305mm 900mm 1800mm
Machining Diameter - Max 600mm 1000mm 1500mm 2000mm 3000mm
Mounting Diameter - Min 200mm 250mm 290mm 800mm 1500mm
Mounting Diameter - Max 600mm 800mm 1400mm 1900mm 2800mm
Mininmum Swing Dia 750mm 1250mm 1200mm 1500mm 2000mm
Tool Post Travel Tiltable ± 30 50mm 50mm 102mm 120mm 120mm
RPM (Max) 20 20 20 20 20
Drive Type Pneumatic / Hydraulic Pneumatic / Hydraulic Pneumatic / Hydraulic Pneumatic / Hydraulic Pneumatic / Hydraulic
Mounting Position Horizontal / Vertical / Inclined position / Over Hear Horizontal / Vertical / Inclined position / Over Hear Horizontal / Vertical / Inclined position / Over Hear Horizontal / Vertical / Inclined position / Over Hear Horizontal / Vertical / Inclined position / Over Hear
Cutting Tool Single Point Single Point Single Point Single Point Single Point
ID Boring Attachment Optional Optional Optional Optional Optional
Back Facing Attachent Optional Optional Optional Optional Optional
Grove Machining Optional Optional Optional Optional Optional
Equipment Weight
Equipment Weight On Job 45Kgs 75Kgs 150Kgs 260Kgs 340Kgs
Packing Size
