Coren's

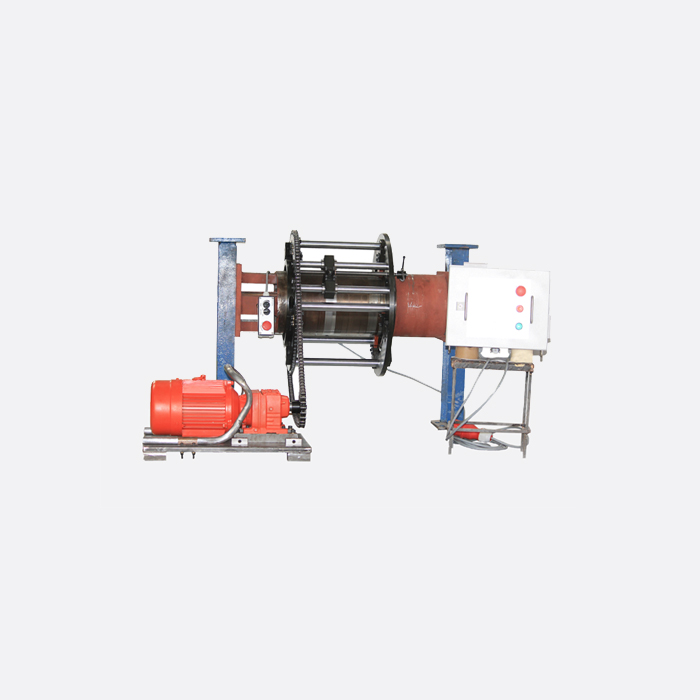

Mid Shaft Turning Machine

Coren's Mid shaft machine is used for OD machining of shafts in in-situ condition.

State of art design.

Unique design to accommodate at any location along the length of the shaft. It can be used to machine the grooves, steps and surface machining on the OD of the shaft.

Range of mid shaft machines

The mid shaft machines range is limited. Hence for every 100 - 150mm difference in diameter different range of machine is required.

Versatile setups

Mounted in horizontal, vertical and inclined positions on different shafts. The machining stroke of this machine can be extended as required.

Robust construction

Constructed for heavy duty applications and still easy for handling. CMSM0300 is driven by hydraulic / electric motor for efficient material removal.

Various applications

Used in various industries like power, steel, shipbuilding / repair, mining cement sugar, heavy engineering etc, covering wide range of applications like shaft, journal, pinion squirrel, rope drums, etc.,

Model	CMTM - 0250	CMTM - 0350	CMTM - 0450	CMTM -600
Machining range OD	150-250 mm	250-350 mm	350-450 mm	450-600 mm
Machining width stroke	300	400	500	600
Drive :	Sprocket with chain	Sprocket with chain	Sprocket with chain	Sprocket with chain
Power: Motor	Electric	Electric	Electric	Electric
Tool Post	Single point	Single point	Single point	Single point
Grinding Attachment	Optional	Optional	Optional	Optional

Model

CMTM - 0250

CMTM - 0350

CMTM - 0450

CMTM -600

Machining range OD

150-250 mm

250-350 mm

350-450 mm

450-600 mm

Machining width stroke

300

400

500

600

Drive :

Sprocket with chain

Power: Motor

Electric

Tool Post

Single point

Grinding Attachment

Optional
