Coren's

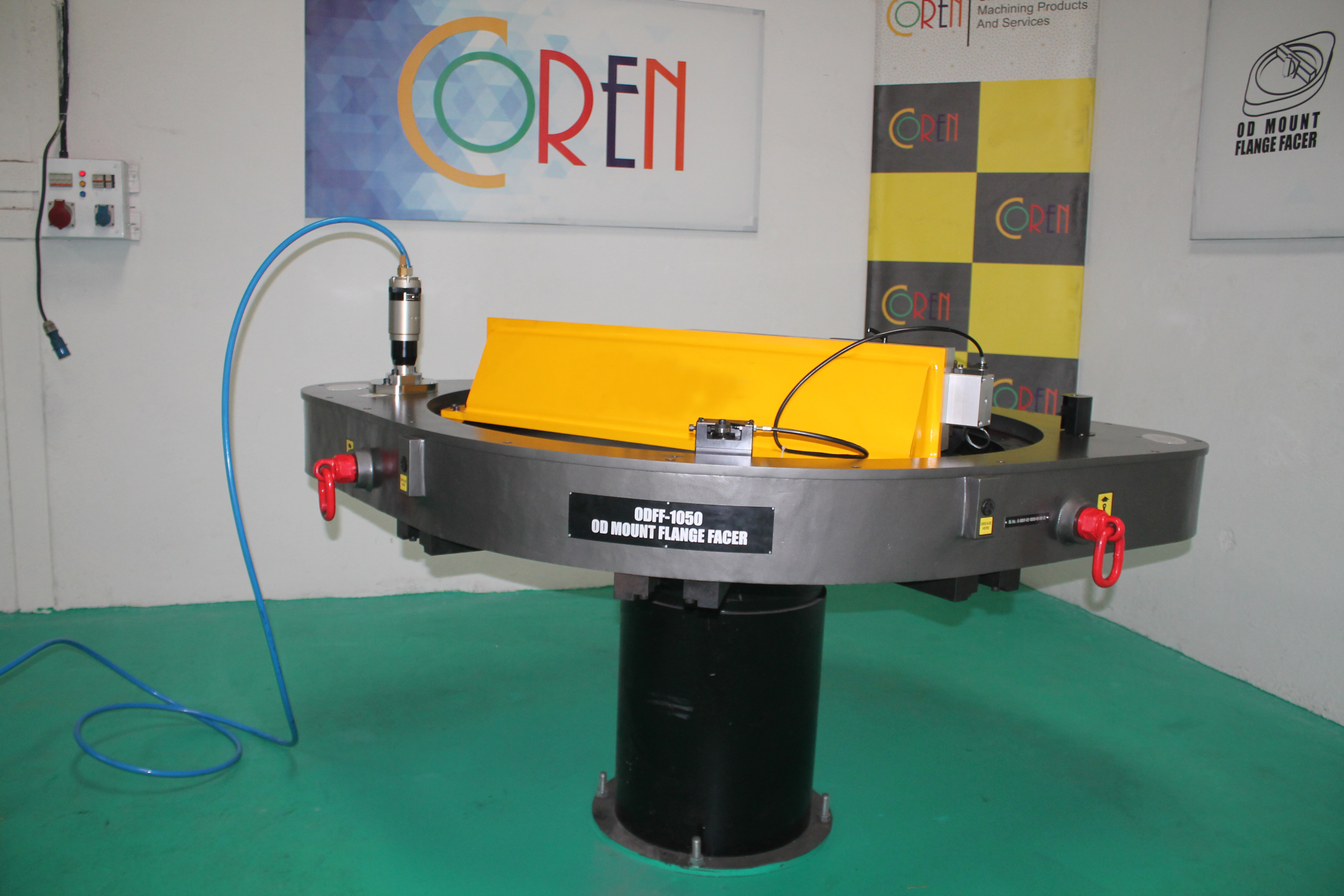

OD Mount Flange Facer

Coren OD Mount Flange Facer are portable equipment used for onsite machining of flanges with high tolerance and good surface finish.

State of art design.

Coren OD Mount range of flange facers are designed to accommodate on wide range of flange machining applications with flange diameters from 0mm to 3050mm.

Robust Construction

Coren OD Mount Flange Facer is constructed to accommodate on all tyes of flanges and still easy for handling. Coren OD Mount Flange Facer is driven by hydraulic / pneumatic motor for spindle rotation and twin electrical motors for circular rotation for efficient material removal.

Versatile setups

Coren OD Mount Flange Facer can be mounted in horizontal, vertical, inclined and overhead positions on different flange machining applications.

Various applications

Coren OD Mount Flange Facer has its usage in various industries like, mining, power, steel, shipbuilding, heavy engineering, refineries petro chemicals etc., covering wide range of applications like, MTB Flanges, T/L trunk and bell trunk faces, ship's gun mounting flanges, valves, crane pedestals etc.,

Technical specification

Model	CODFF-0800	CODFF-1050	CODFF-1300	CODFF-1550	CODFF-1800	CODFF-2050	CODFF-2300	CODFF-2550	CODFF-2800	CODFF-3050
Mounting Range	500mm-800mm	750mm-1050mm	1000mm-1300mm	1250mm-1550mm	1500mm-1800mm	1750mm-2050mm	2000mm-2300mm	2250mm-2550mm	2500mm-2800mm	2750mm-3050mm
Machining Range	20mm-800mm	20-1050mm	20-1300mm	20-1550mm	20-1800mm	20-2050mm	20-2300mm	20-2550mm	20-2800mm	20-3050mm
Cutting Tool	Single point- Drive -Pneumatic	Single point- Drive -Pneumatic	Single point- Drive -Pneumatic	Single point- Drive -Pneumatic	Single point- Drive -Pneumatic	Single point- Drive -Pneumatic	Single point- Drive -Pneumatic	Single point- Drive -Pneumatic	Single point- Drive -Pneumatic	Single point- Drive -Pneumatic
Tool Post	± 45°	± 45°	± 45°	± 45°	± 45°	± 45°	± 45°	± 45°	± 45°	± 45°
Cutting Tool	Multi point-Electric for machine Rotation, Hydrulic Drive for cutter	Multi point-Electric for machine Rotation, Hydrulic Drive for cutter	Multi point-Electric for machine Rotation, Hydrulic Drive for cutter	Multi point-Electric for machine Rotation, Hydrulic Drive for cutter	Multi point-Electric for machine Rotation, Hydrulic Drive for cutter	Multi point-Electric for machine Rotation, Hydrulic Drive for cutter	Multi point-Electric for machine Rotation, Hydrulic Drive for cutter	Multi point-Electric for machine Rotation, Hydrulic Drive for cutter	Multi point-Electric for machine Rotation, Hydrulic Drive for cutter	Multi point-Electric for machine Rotation, Hydrulic Drive for cutter
Quill for MultiPoint Operation	ISO-40	ISO-40	ISO-40	ISO-40	ISO-40	ISO-40	ISO-40	ISO-40	ISO-40	ISO-40
Cutter size For Milling Operation	Ø125	Ø125	Ø125	Ø125	Ø125	Ø125	Ø125	Ø125	Ø125	Ø125
Controls For Machine Rotation & Spindle Drive	Hand Pendant With VFD	Hand Pendant With VFD	Hand Pendant With VFD	Hand Pendant With VFD	Hand Pendant With VFD	Hand Pendant With VFD	Hand Pendant With VFD	Hand Pendant With VFD	Hand Pendant With VFD	Hand Pendant With VFD
Max cutting Depth	single point - 2mm Radially multi point - 1mm	single point - 2mm Radially multi point - 1mm	single point - 2mm Radially multi point - 1mm	single point - 2mm Radially multi point - 1mm	single point - 2mm Radially multi point - 1mm	single point - 2mm Radially multi point - 1mm	single point - 2mm Radially multi point - 1mm	single point - 2mm Radially multi point - 1mm	single point - 2mm Radially multi point - 1mm	single point - 2mm Radially multi point - 1mm
Surface Roughness	Single point - multi point	Single point - multi point	Single point - multi point	Single point - multi point	Single point - multi point	Single point - multi point	Single point - multi point	Single point - multi point	Single point - multi point	Single point - multi point
Feed	Single point - Auto Feed with Ratchet Mechanism multi point - Manual Hand Wheel	Single point - Auto Feed with Ratchet Mechanism multi point - Manual Hand Wheel	Single point - Auto Feed with Ratchet Mechanism multi point - Manual Hand Wheel	Single point - Auto Feed with Ratchet Mechanism multi point - Manual Hand Wheel	Single point - Auto Feed with Ratchet Mechanism multi point - Manual Hand Wheel	Single point - Auto Feed with Ratchet Mechanism multi point - Manual Hand Wheel	Single point - Auto Feed with Ratchet Mechanism multi point - Manual Hand Wheel	Single point - Auto Feed with Ratchet Mechanism multi point - Manual Hand Wheel	Single point - Auto Feed with Ratchet Mechanism multi point - Manual Hand Wheel	Single point - Auto Feed with Ratchet Mechanism multi point - Manual Hand Wheel
SPEED	Single point - 20 RPM multi point - 1 RPM	Single point - 20 RPM multi point - 1 RPM	Single point - 20 RPM multi point - 1 RPM	Single point - 20 RPM multi point - 1 RPM	Single point - 20 RPM multi point - 1 RPM	Single point - 20 RPM multi point - 1 RPM	Single point - 20 RPM multi point - 1 RPM	Single point - 20 RPM multi point - 1 RPM	Single point - 20 RPM multi point - 1 RPM	Single point - 20 RPM multi point - 1 RPM
Machine Mounting postion	Horizontal /Vertical / Inclined	Horizontal /Vertical / Inclined	Horizontal /Vertical / Inclined	Horizontal /Vertical / Inclined	Horizontal /Vertical / Inclined	Horizontal /Vertical / Inclined	Horizontal /Vertical / Inclined	Horizontal /Vertical / Inclined	Horizontal /Vertical / Inclined	Horizontal /Vertical / Inclined
weight (Approx:)	1200 kg	1500kg	1800kg	3000kg	3500kg	3800kg	4300kg	4600kg	5200kg	5600kg
